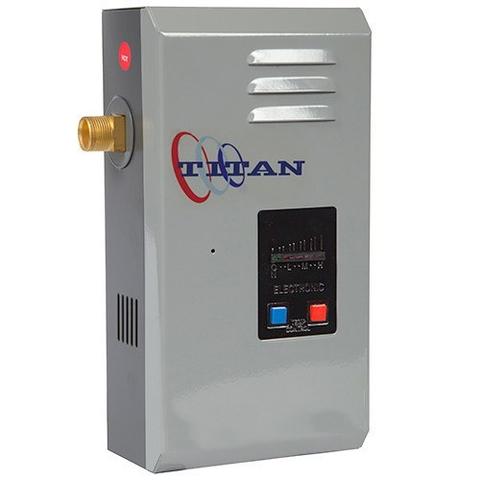

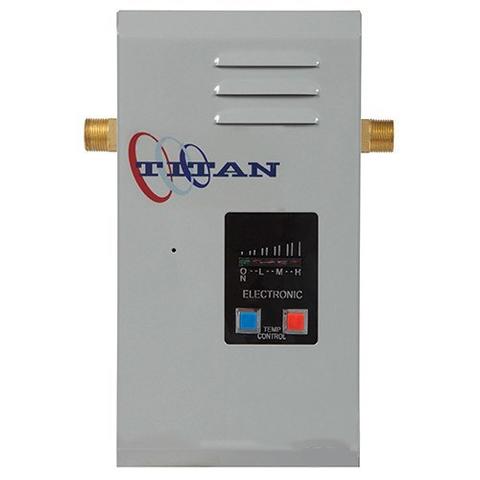

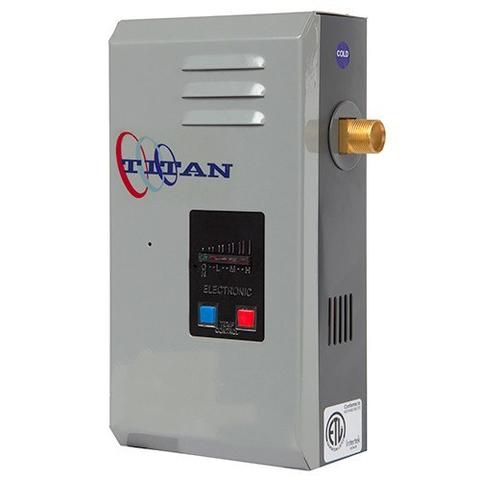

Titan N-64 SCR-2 Series




Electronic Tankless Water heater

Benefits:

  • Space Saver

  • Occupies Zero Floor Space

  • Unlimited Supply Of Hot Water

  • Energy Efficiency Up To 99.5 %

  • Reduces Water Heating Cost As Much As 60 %

  • Environmentally Friendly

  • Digital Microprocessor Controller

  • Dual Incoloy Nichrome

  • 1 Year Warranty On Components & 10 Years Warranty Against Leakage

  • Brass Casing Material with 1/2" Standard Pipe Fitting

  • Indicators Red-On / Green-stand by

Unit Specifications and Temperature Rise Chart:

  • Maxflow 2.5 GPM / 6.5 KW / 220V / 29 Amps / 30 Amps Breaker / 10 GA Wire

  • Temp @ 1.0 GPM 51° / Temp @ 1.5 GPM 35° / Temp @ 2.0 GPM 26° / Temp @ 2.5 GPM 21°

Important Notes:

  • Always use the wire that comes with the unit to connect to the junction box or disconnect switch.

  • Before turning on the electricity let the water run for 20 seconds through the unit.

  • Always flush all the water lines before connecting the unit to the copper pipes.

  • Note that excessive heat from soldering on copper pipes near the heater may cause internal damage.

  • DO NOT OPEN the unit under circumstances unless you contact a technician at Niagara Industries to diagnose the problem.

  • Tested.......................MET Laboratories.

  • Protection.................Micro temperature thermostat/Manual resettable thermostat.
